Dual Cartridge Air Operated

No product matches your request.

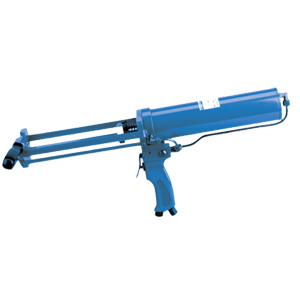

Dual Cartridge Air Operated - #AG-231

300 ml x 100 ml
Weight 6 lbs.
Length and width 9-1/16" x 4-1/16"
Overall length 22"
Air req 90-145 psi
Thrusting force 600
Ratio 3 to 1
Aluminum air cylinder is 2-1/2" in diameter. Has "air in" and "air out." This provides power forward and power reverse for ease of operation. Supplied with built in air regulator at base of handle for added stability.

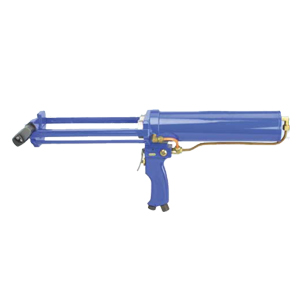

Dual Cartridge Air Operated - #AG-250

300 ml x 300 ml
Weight 5-1/2 lbs.
Length and width 9-3/16" x 4-1/8"
Overall length 22"
Air req 90-145 psi
Thrusting force 600 lbs
Ratio 1 to 1
Aluminum air cylinder is 2-1/2" in diameter. Has "air in" and "air out." This provides power forward and power reverse for ease of operation. Supplied with built in air regulator at base of handle for added stability. Comes with interchangeable side handle for added stability.

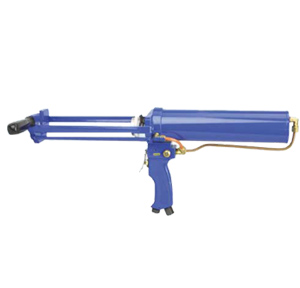

Dual Cartridge Air Operated - #AG-251

300 ml x 150 ml
Length and width 9-3/16" x 4-1/8"
Overall length 22"
Air req 90-145 psi
Thrusting force 600 lbs
Ratio 2 to 1
Aluminum air cylinder is 2-1/2" in diameter. Has "air in" and "air out." This provides power forward and power reverse for ease of operation. Supplied with built in air regulator at base of handle for added stability. Comes with interchangeable side handle for added stability.

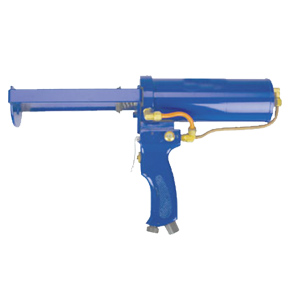

Dual Cartridge Air Operated - #AG-328

100 ml x 100 ml
Length and width 6-7/8" x 3-1/8"
Overall length 15-1/4"
Air req 90-145 psi
Thrusting force 500 lbs
Ratio 1 to 1
Aluminum air cylinder is 2-1/2" in diameter. Has "air in" and "air out." This provides forward and power reverse for ease of operation. Supplied with built in air regulator at base of handle for added stability.

Dual Cartridge Air Operated - #AG-400

750 ml x 750ml
Length and width 9-3/16" x 6-1/2"
Overall length 22"
Weight 8.5 lbs
Air req 90-145 psi
Thrusting force 1500 lbs
Ratio 1 to 1
Aluminum air cylinder is 4” diameter. Has “air in” and “air out”. This provides power forward and power reverse for ease of operation. Supplied with built in air regulator at base of handle. Comes with interchangeable side handle for added stability.

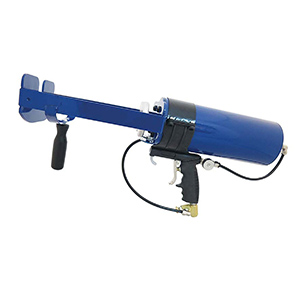

Dual Cartridge Air Operated - #AG-401

Air Epoxy Dispenser, 750ml x 750ml
Air pressure required 90-100 psi
Thrusting force 1500 lbs
Ratio 1 to 1
3 position side handle, reverse air plunger returns instantly, dripless air damp valve

Dual Cartridge Air Operated - #AG-433

300 ml x 300 ml
Length and width 9-3/16" x 4-1/2"
Overall length 22"
Weight 8.5lbs
Air req 90-145 psi
Thrusting force 1500 lbs
ratio 1 to 1
Aluminum air cylinder is 4” diameter. Has “air in” and “air out”. This provides power forward and power reverse for ease of operation. Supplied with built in air regulator at base of handle. Comes with interchangeable side handle for added stability.

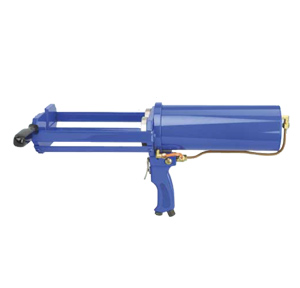

Dual Cartridge Air Operated - #AG-460

600 ml x 600ml
Length and width 9-3/16" x 6-1/2"
Overall length 22"
Weight 8.5 lbs
Air req 90-145 psi
Thrusting force 1500 lbs
Ratio 1 to 1
Aluminum air cylinder is 4” diameter. Has “air in” and “air out”. This provides power forward and power reverse for ease of operation. Supplied with built in air regulator at base of handle. Comes with interchangeable side handle for added stability.

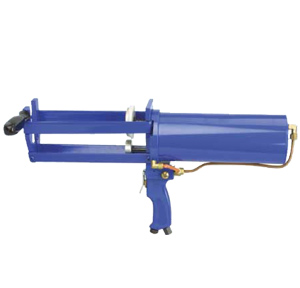

Dual Cartridge Air Operated - #AG-463

600 ml x 300ml
Length and width 9-3/16" x 6-1/2"
Overall length 22"
Weight 8.5 lbs
Air req 90-145 psi
Ratio 2 to 1
Thrusting force 1500 lbs
Ratio 2 to 1
Aluminum air cylinder is 4” diameter. Has “air in” and “air out”. This provides power forward and power reverse for ease of operation. Supplied with built in air regulator at base of handle. Comes with interchangeable side handle for added stability.

Dual Cartridge Air Operated - #AG-750

750 ml x 75 ml
Weight 8 lbs
Air req 90-145 psi
Ratio 10 to 1
Aluminum air cylinder is 4” diameter. Has “air in” and “air out”. This provides power forward and power reverse for ease of operation. Supplied with built in air regulator at base of handle. Comes with interchangeable side handle for added stability.
